In the realm of engineering, high-strength aluminum alloys hold a prominent position, offering a unique blend of lightweight properties and impressive mechanical strength. However, these alloys come with a caveat - the risk of weld cracking. Understanding the nuances of weld cracking and implementing strategies to avoid it is paramount for ensuring the integrity and reliability of fabricated structures. In this article, Megmeet-welding delves into the intricacies of weld cracking in high-strength aluminum alloys and provides comprehensive guidance on mitigation techniques.

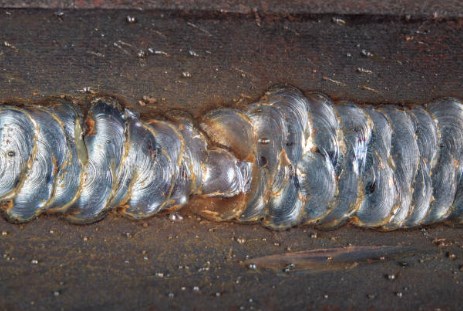

I. Weld Cracking in Aluminium Alloys
Weld cracking in aluminum alloys poses a formidable challenge in the realm of fabrication, where the pursuit of structural integrity meets the intricacies of metallurgical science. As the backbone of numerous industries, from aerospace to automotive, aluminum alloys offer a compelling combination of lightweight properties and mechanical strength. However, the susceptibility of these alloys to cracking during welding necessitates a nuanced understanding of the underlying mechanisms and proactive measures to mitigate potential risks.
II. Types of Weld Cracking in Aluminium Alloys
Weld cracking in aluminum alloys manifests in various forms, each demanding specific mitigation strategies. Understanding these types is vital for effective problem-solving during fabrication. Here are the primary types:
Hot Cracking: Occurs during solidification due to rapid cooling rates, leading to micro-cracks along grain boundaries.
Cold Cracking: Forms post-welding due to residual stresses and hydrogen embrittlement, often in stress-concentrated areas.
Stress Corrosion Cracking: Occurs in corrosive environments under tensile stress, initiating and propagating cracks, especially in marine or aerospace applications.
Liquation Cracking: Results from liquation phenomena during welding, causing cracks along boundaries between liquated and solidified regions.
Lamellar Tearing: Less common but can occur in thick-section weldments, characterized by separation of layers under high tensile stress, influenced by material orientation and welding parameters.
III. Causes of Weld Cracking
Weld cracking can stem from various sources, each posing unique challenges to the welding process and the structural integrity of the final product. Weld cracking is normally caused by:
1) Thermal stresses during welding
The rapid heating and subsequent cooling cycles during welding induce thermal stresses within the material, predisposing it to cracking. Controlling heat input and minimizing thermal gradients are essential for mitigating this form of cracking.
2) Solidification cracking
Solidification cracking occurs when the molten weld metal solidifies, leading to the formation of micro-cracks along the grain boundaries. Proper filler metal selection and optimized welding parameters can help prevent this type of cracking.
3) Hydrogen embrittlement
Hydrogen, often present in welding environments, can diffuse into the weld metal and render it susceptible to embrittlement and cracking. Implementing effective shielding gas techniques and minimizing moisture contamination is crucial for mitigating hydrogen-induced cracking.
4) Residual stresses
Residual stresses, arising from differential thermal expansion and contraction, can promote crack initiation and propagation in the welded structure. Post-weld heat treatment and stress relief procedures are essential for alleviating these residual stresses and minimizing the risk of cracking.
IV. How to Avoid Weld Cracking in High-Strength Aluminium Alloys?
Pre-welding Preparations to Minimize Cracking Risks: Proper pre-welding preparations play a pivotal role in reducing the susceptibility of high-strength aluminum alloys to weld cracking.
Proper material selection: Choosing the appropriate alloy grade and filler metal composition based on the specific application and service conditions is fundamental for ensuring weldability and crack resistance.
Surface preparation and cleaning: Thorough cleaning of the welding surfaces to remove contaminants such as oils, grease, and oxides is imperative for achieving sound welds devoid of defects.
Preheating techniques: Preheating the base metal before welding can help reduce thermal gradients and minimize the risk of cracking, particularly in thicker sections and highly restrained joints.
Controlling welding parameters: Fine-tuning welding parameters such as heat input, travel speed, and interpass temperature are essential for achieving optimal weld quality and mitigating cracking risks.
Advanced Welding Techniques to Prevent Cracking: Several advanced welding techniques such as Tungsten inert gas (TIG) welding, Pulsed gas metal arc welding (GMAW-P), Friction stir welding (FSW) and Laser beam welding (LBW) offer enhanced crack resistance and weld quality for high-strength aluminum alloys.
Post-welding Procedures for Crack Mitigation: Implementing post-welding procedures is essential for relieving residual stresses and enhancing the structural integrity of welded components.
Stress relief heat treatment: Stress relief heat treatment, conducted at controlled temperatures and durations, helps alleviate residual stresses and minimize the risk of cracking in welded structures.
Peening techniques: Mechanical peening techniques such as shot peening and hammer peening induce compressive stresses on the surface of welded components, enhancing fatigue resistance and reducing the propensity for crack initiation.
Mechanical treatments: Machining or grinding excess weld metal and smoothing weld profiles can eliminate potential stress concentration points and improve the overall fatigue performance of welded structures.
Non-destructive testing (NDT): Utilizing NDT techniques such as ultrasonic testing, radiographic testing, and dye penetrant inspection can help detect and evaluate internal defects or discontinuities that may lead to cracking.
Best Practices for Long-term Crack Prevention: Maintaining long-term crack prevention requires a holistic approach encompassing monitoring, training, and collaboration efforts.
Monitoring and maintenance: Regular inspection and monitoring of welded components throughout their service life can identify potential crack initiation sites and facilitate timely remedial actions to prevent catastrophic failures.
Continuous improvement in welding processes: Embracing a culture of continuous improvement and innovation in welding processes enables organizations to stay abreast of emerging technologies and best practices for crack prevention.
● Training and qualification of personnel: Investing in training and qualification programs for welding personnel ensures adherence to industry standards and best practices, minimizing the likelihood of welding defects and associated cracking risks.
● Collaboration with material suppliers and experts: Engaging with material suppliers and industry experts facilitates access to cutting-edge research, materials, and technologies aimed at optimizing weldability and crack resistance in high-strength aluminum alloys.
V. Conclusion
In conclusion, weld cracking in aluminum alloys represents a multifaceted challenge that demands a comprehensive understanding of metallurgical principles, welding techniques, and material behavior. By identifying the underlying mechanisms, controlling critical factors, and implementing preventive measures, engineers and fabricators can mitigate the risk of cracking and ensure the reliability and integrity of aluminum alloy structures in diverse applications.
Related Articles
1. How To Weld Cast Iron And Avoid Weld Cracking？
2. How to Identify the 7 Most Dangerous Welding Defects?
3. Tips for Troubleshooting Common MIG Weld Defects
4. Undercut Welding Defect: Causes, Prevention, and Repair
5. Welding Defects and Remedies in Steel Material
FAQs:
Q1. What causes weld cracking in high-strength aluminum alloys?
Weld cracking can occur due to factors like alloy composition, cooling rates, joint design flaws, and residual stresses.
Q2. Why is pre-welding preparation crucial?
Preparing materials and joints ensures cleaner surfaces and proper fit-up, reducing stress concentrations.
Q3. Are there specific welding techniques recommended for these alloys?
Processes like TIG, MIG, and laser welding can be used with adjustments for high-strength aluminum alloys.
Q4. How important is controlling heat input during welding?
Regulating heat minimizes rapid cooling, reducing the risk of cracks forming in the alloy.
Q5. What role do post-weld treatments play in preventing weld cracking?
Stress relief techniques and post-weld treatments help alleviate residual stresses, enhancing weld integrity.
