Vertical MIG Welding (Vertical-up and Vertical-down) Techniques
Vertical MIG welding, or vertical-up welding, presents challenges and opportunities for welders. Unlike flat or horizontal welding, where gravity assists in maintaining the weld pool, vertical welding requires precise control to prevent sagging, uneven beads, and lack of fusion. In this article, we’ll explore essential tips, techniques, and welding patterns that will help you master the art of welding vertically.

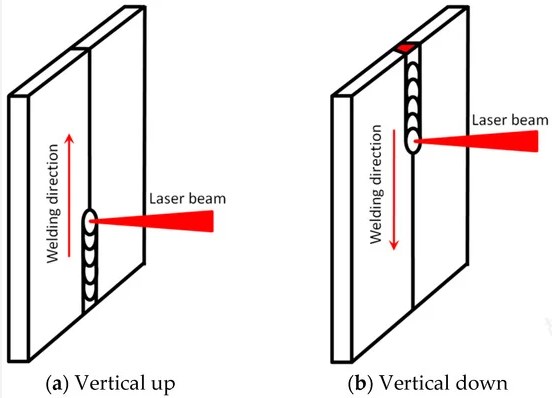

I. Vertical Welding: Vertical-Up and Vertical-Down
There are two types of vertical welding: vertical up and vertical down welding. However, these two welding methods have their own pros and cons, and they are suitable for different applications.
II. Pros and cons of Vertical Up (Vertical-Up) Welding
1) Pros:
Better Penetration:
Vertical-up welding provides deeper penetration into the base material.
Ideal for thicker sections and critical joints.
Less Heat Input:
Since the heat travels against gravity, less heat input is required.
Minimizes distortion and warping.
Cleaner Appearance:
The “stack of dimes” pattern often results in aesthetically pleasing weld beads.
Suitable for visible welds.
2) Cons:
Challenging Technique:
Vertical-up welding demands precise control and steady hands.
Beginners may find it difficult to maintain a consistent bead.
Risk of Sagging:
If not properly controlled, the molten metal can sag or drip.
Requires skill to prevent defects.
III. Pros and Cons of Vertical Down (Vertical-Down) Welding
1) Pros:
Easier Technique:
Vertical-down welding is more forgiving and easier for beginners.
Vertical-down welds have shallower penetration compared to vertical-up.
Not ideal for critical joints or thick materials.
Potential Undercut:
Fast travel speed can lead to undercut (grooves along the edges).
Requires attention to avoid defects.
IV. Can You Weld Vertically with MIG?
MIG (Metal Inert Gas) welding can indeed be used for vertical welding, but it requires specific techniques and considerations. Here’s what you need to know:
1) Short-Circuit Mode (Short-Arc):
Suitability: Short-arc mode is the most popular and cost-effective choice for vertical welding. It works both uphill (vertical-up) and downhill (vertical-down).
How It Works: The arc stops and reignites rapidly, creating a small and “cold” puddle that freezes quickly. This makes it suitable for vertical welding.
Limitations: Short-arc mode has metal thickness limitations, especially for thicker materials.
2) Pulsed Mode:
Suitability: Pulsed mode is suitable for high-productivity work, including vertical welding.
How It Works: It uses a continuous arc but delivers amperage in two steps: melting the wire and transferring metal as tiny droplets, followed by reduced amperage to freeze the puddle in place.
Requirements: Pulsed mode requires a robust welding machine and a high argon gas blend (e.g., C10).
3) Slag Consideration:
MIG welding with solid wires doesn’t generate slag as flux-cored wires do. Slag helps support the puddle during uphill welding. Therefore, MIG has limitations for vertical welding due to the absence of slag.
In most cases, short-arc mode is sufficient for common vertical welding tasks.
V. Welding Patterns for Vertical MIG Welding
There are some common welding patterns used for vertical MIG welding, which help achieve consistent and visually appealing welds:
1) Steady Motion (Straight Bead):
Description: In this pattern, the welder moves the MIG gun steadily along the joint in a straight line.
Application: Ideal for long, continuous welds on flat or slightly curved surfaces.
Advantages: Simple and efficient.
2) Whipping (Zigzag Bead):
Description: The welder creates a zigzag or “whipping” motion while moving the MIG gun along the joint.
Application: Suitable for thicker materials and wider joints.
Advantages: Provides better heat distribution and fusion.
3) Circle (Circumferential Bead):
Description: The welder moves the MIG gun in a circular motion, creating a bead that resembles concentric circles.
Application: Useful for welding pipes, tubes, and cylindrical structures.
Advantages: Ensures uniform coverage around the joint.
4) Weave (Stack of Dimes):
Description: The welder combines slight side-to-side movement (weaving) with forward travel.
Application: Commonly used for vertical-up welding.
Advantages: Aesthetic appearance and good penetration.
5) J-Weave (J-Bevel):
Description: Similar to the weave pattern but with a “J” shape at the end of each weave.
Application: Effective for thicker materials and joint configurations.
Advantages: Enhances fusion and bead appearance.
VI. MIG Vertical Uphill (Vertical-Up) Settings and Basics
1) Joint Preparation:
Cleanliness: Ensure the joint surfaces are clean and free from rust, oil, or contaminants.
Bevel Angle: Consider a slight bevel (around 30°) on thicker materials to improve penetration.
2) Electrode Angle:
Hold the MIG gun at a 15-20° angle from vertical. This allows better access to the joint and helps control the weld pool.
3) Wire Feed Speed (WFS):
Adjust the WFS based on material thickness. Start with a moderate setting and fine-tune as needed.
Faster WFS for thinner materials, slower for thicker ones.
4) Voltage (Volts):
Higher voltage provides better penetration. Adjust within the recommended range for your specific setup.
Experiment to find the sweet spot for your welding machine.
5) Travel Speed:
Move steadily but not too fast. Too slow can cause excessive heat buildup.
Aim for a consistent travel speed to maintain a uniform bead appearance.
6) Weave Technique:
Use a slight side-to-side motion (weaving) to distribute heat evenly.
The “stack of dimes” pattern is popular for vertical-up welding.
7) Gas Flow Rate:
Maintain proper shielding gas flow (usually 20-25 CFH).
Good gas coverage prevents oxidation and ensures a clean weld.
8) Electrode Stickout:
Keep the electrode stickout (distance between the contact tip and workpiece) around 1/4 inch (6 mm).
Too short or too long stickout affects arc stability.
9) Practice and Patience:
Vertical-up welding requires practice. Start with scrap pieces to hone your technique.
Be patient and focus on maintaining a consistent arc length.
VII. MIG Vertical Downhill (Vertical-Down) Settings and Basics
1) Joint Preparation:
Cleanliness: Ensure the joint surfaces are clean and free from rust, oil, or contaminants.
Bevel Angle: While beveling is less common for downhill welding, consider a slight bevel (around 15°) on thicker materials to improve penetration.
2) Electrode Angle:
Hold the MIG gun at a 5-10° angle from vertical. This minimizes the risk of excessive penetration and helps control the weld pool.
3) Wire Feed Speed (WFS):
Adjust the WFS based on material thickness. Start with a moderate setting and fine-tune as needed.
Slower WFS for thinner materials, faster for thicker ones.
4) Voltage (Volts):
Lower voltage reduces penetration. Adjust within the recommended range for your specific setup.
Experiment to find the right balance between heat input and bead appearance.
5) Travel Speed:
Move smoothly and consistently. Too fast can lead to insufficient fusion.
Maintain a steady travel speed to achieve uniform welds.
6) Weave Technique:
For downhill welding, minimize weaving. A straight-line technique is often preferred.
Focus on maintaining a stable arc and avoiding excessive heat buildup.
7) Gas Flow Rate:
Maintain proper shielding gas flow (usually 20-25 CFH).
Adequate gas coverage prevents oxidation and ensures a clean weld.
8) Electrode Stickout:
Keep the electrode stickout (distance between the contact tip and workpiece) around 1/4 inch (6 mm).
Downhill welding demands adaptability. Adjust your technique based on material type and thickness.
Practice on scrap pieces to refine your skills.
VIII. Mig Welding Tips and Tricks for Vertical Welds
Cleanliness Matters: Before starting, ensure the joint surfaces are clean and free from contaminants. Any residue can affect weld quality.
Choose the Right Wire and Gas: Select an appropriate MIG wire based on the material you’re welding (e.g., ER70S-6 for mild steel). Use the correct shielding gas (usually a mix of argon and CO?) to protect the weld pool.
Optimize Gas Flow Rate: Maintain a consistent gas flow (typically 20-25 CFH) to prevent oxidation. Proper shielding ensures a clean weld.
Electrode Stickout: Keep the electrode stick-out (distance between the contact tip and workpiece) around 1/4 inch (6 mm). Consistent stickout promotes stable arc performance.
Control Travel Speed: Move steadily but not too fast. Too slow can lead to excessive heat buildup. Aim for a consistent travel speed to achieve uniform bead appearance.
Weave Technique (Stack of Dimes): For vertical-up welding, use a slight side-to-side motion (weaving). The “stack of dimes” pattern ensures good penetration and an attractive bead.
Monitor the Weld Pool: Pay attention to the molten pool. Adjust your technique as needed to maintain proper puddle control.
Practice and Patience: Vertical welding requires practice. Start with scrap pieces to hone your skills. Be patient and focus on maintaining a consistent arc length.
IX. Megmeet Verticalup Welding Solution
Vertical MIG welding presents unique challenges, such as managing gravity’s influence on molten metal and ensuring proper bead formation. To excel in this technique, welders must maintain a steady hand, adjust their welding parameters thoughtfully, and utilize suitable torch angles. This is where the Megmeet Vertical Up Welding Solution comes into play. Designed to streamline the vertical MIG welding process, Megmeet’s solution incorporates advanced automated controls that ensure consistent welding parameters and superior arc stability. With its user-friendly interface and real-time monitoring features, this technology empowers welders to achieve high-quality welds with greater efficiency and precision, making it an essential tool for tackling vertical welding projects across various industries. You can check the video below to see the efficiency or turn to Megmeet welding solutions for different industries to find your solutions.
Conclusion
Vertical MIG welding is both an art and a science. Whether you’re welding uphill or downhill, the key lies in practice, precision, and understanding the nuances. Remember to choose between vertical-up and vertical-down based on your skill level and project requirements. Optimize your settings, experiment with weaving techniques, and explore different welding patterns. Keep patience and persistence while welding vertically. So, gear up, grab your helmet, and let the sparks fly!
