Features

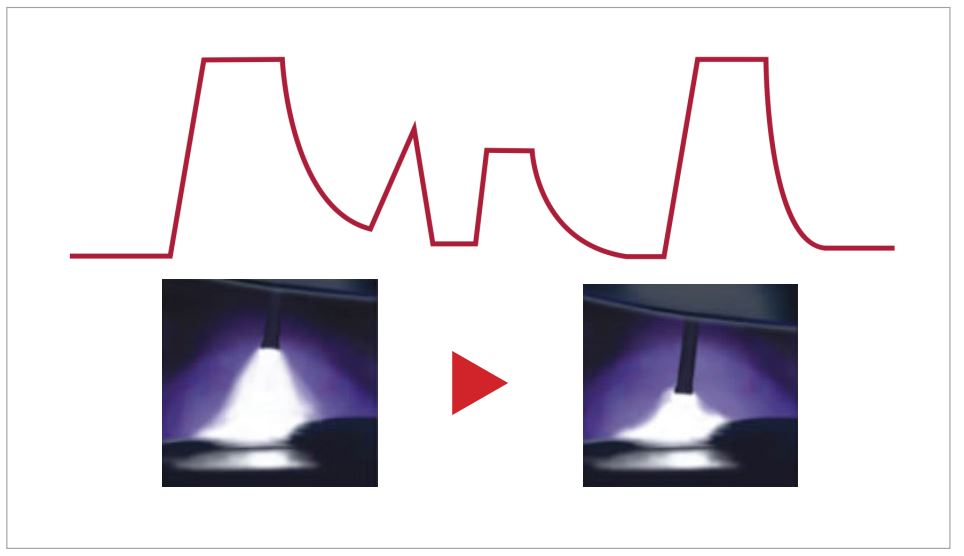

1. Thunder Fusion (Short Arc Pulse Welding)

Shot-circuit transfer was added to the waveform of the standard pulse process. It is a superb combination of synergic and pulse welding processes, together with their advantages, and achieving better results with a short welding arc.

Features in the Welding Process:




• Welding with lowered voltage to achieve spatter-free and beautiful results with the pulse process

• Short in transfer arc, higher in transfer frequency, stronger in anti-interference capability

• More friendly to robotic welding with high arc stiffness and sharp arc direction


• Heat input lowered to avoid defects like undercuts


• Deposition rate increased


• Welding spatter is eliminated. The welding process becomes well-controlled

2. LSA (Low-spatter Arc for MAG / CO2)

Optimized and upgraded based on standard synergic MIG/MAG, through software-based precise control, the molten droplet of short-circuit transfer is softly disconnected so that the spatter caused by the traditional liquid bridge explosion and electromagnetic repulsion is reduced. The molten pool is calmer, and the weld formation is more beautiful.

Process Characteristics:

• Accurate in software control for high-frequency short-circuit transfer. Lower in spatter. Lower in heat input. Highly suitable for sheet metal welding

• Soft in welding arc and fine with spatter particles. Less spatter remains on the workpiece. Lower with rework, like grinding after welding. Higher total working efficiency

• Higher in welding speed. Better in deformation control. More helpful in welding quality

3. Consistent Fusion

When the base material is uneven and the stick-out length changes, the power source automatically adjusts the wire-feeding speed instantly, and prevents the melting depth from being affected by the changing stick-out length. Welding quality is therefore improved

Process characteristics：

• The welding arc has high dynamic characteristics and stability, stable penetration, and high-quality


• Suitable for automated welding by robots and special machines

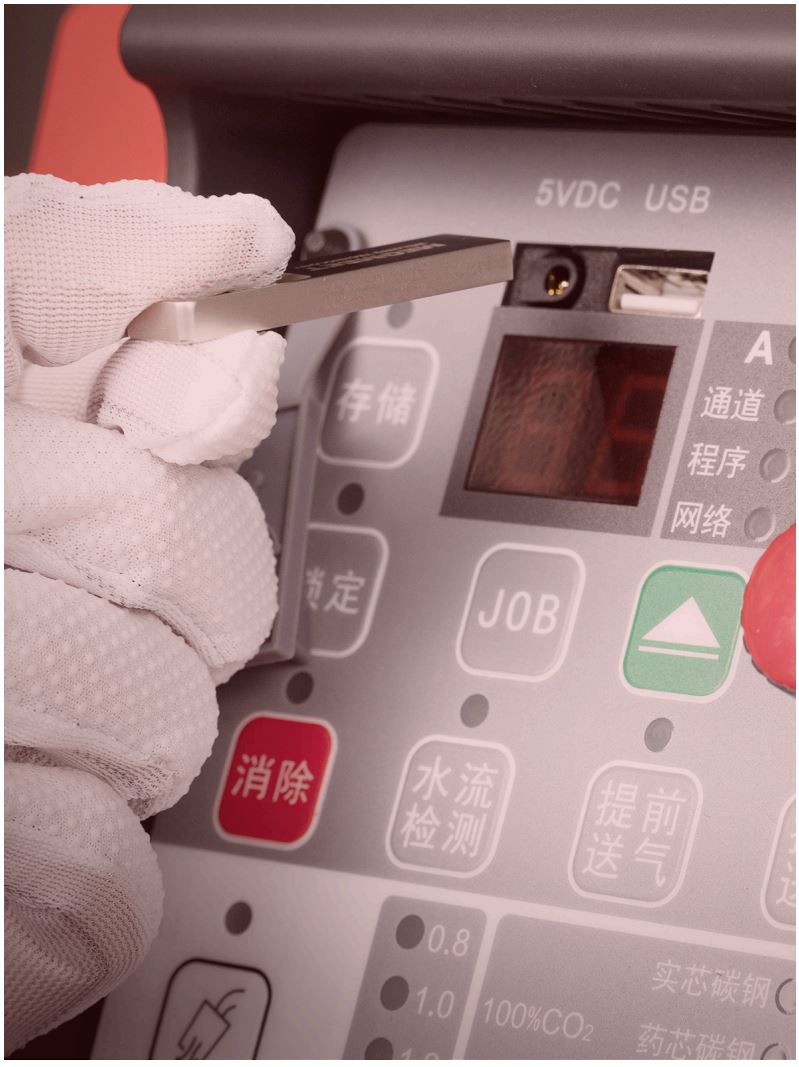

4. USB Port

It benefits welders by ensuring fast access to the latest or any tailor-made welding process by MEGMEET. The welding process could be shared and downloaded online into a USB, and used thru the port for upgrading

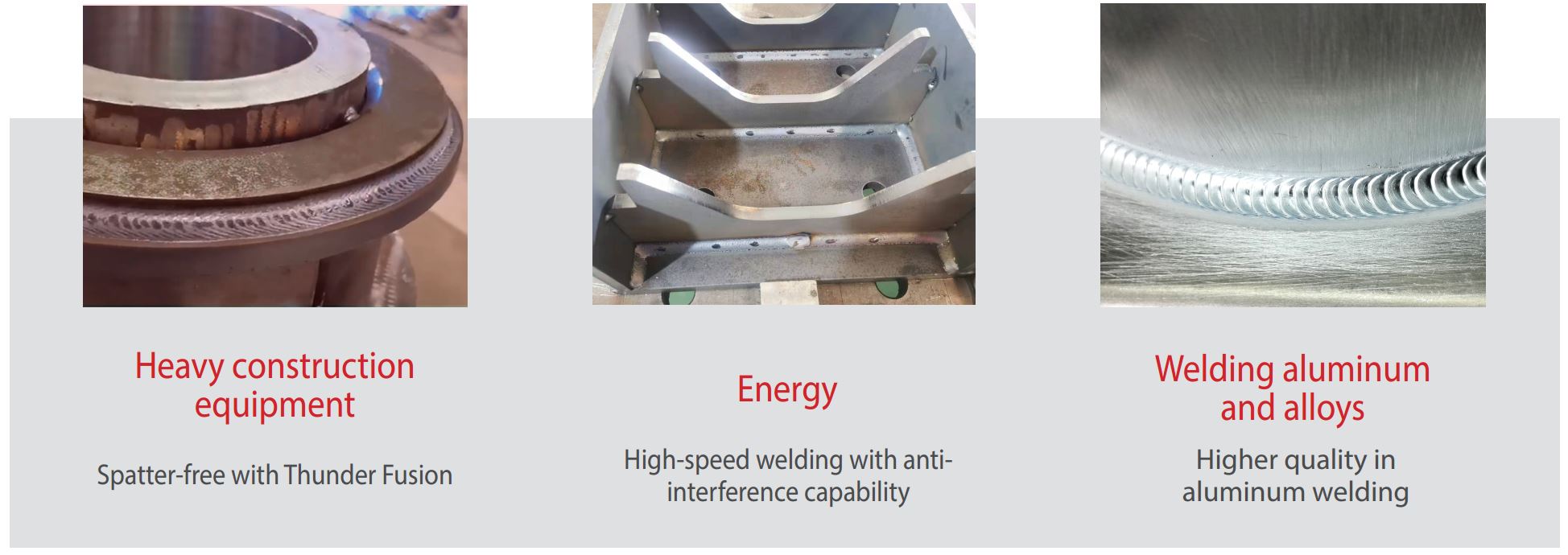

Welding Application: Megmeet Artsen Pro welding machines propel the rapid development of Chinese engineering machinery!
