MIG welding is one of the most popular and versatile welding methods, widely used in various industries and applications. However, not all MIG welding processes are the same. Depending on the electrical parameters, wire feed speed, shielding gas, and other factors, different metal transfer modes can be achieved, resulting in different weld characteristics and quality. View MIG Welding Tips From Megmeet.

One of the most common and useful metal transfer modes is the short circuit mode, also known as short circuit MIG welding or short arc MIG welding. This mode offers precise control over the heat input, penetration, and spatter, making it ideal for welding thin materials, out-of-position welds, and complex joints.

In this article, we will explore the fundamentals of short-circuit MIG welding, including its advantages, disadvantages, settings, techniques, and applications. We will also compare it with other metal transfer modes and provide some tips and tricks to improve your short-circuit MIG welding skills.

I. What is Short Circuit MIG Welding?

Short-circuit MIG welding is a process that involves the transfer of metal droplets across the welding arc in a controlled manner. In this mode, the wire electrode comes into contact with the workpiece, causing a short circuit to occur. This results in a momentary drop in voltage, which in turn reduces the heat input. As a result, the welding wire quickly retracts, breaking the short circuit and allowing the process to repeat. This cyclical motion creates a series of small, controlled droplets that are transferred to the weld pool.

One of the key advantages of short-circuit MIG welding is its ability to minimize heat input, which is especially beneficial when welding thin materials. By controlling the electrical parameters and filler wire feed rate, welders can achieve precise control over the size and frequency of the droplets, resulting in improved weld quality and reduced spatter.

II. What are the Advantages of Short-Circuit MIG Welding?

Short circuit MIG welding offers several benefits over other metal transfer modes, such as:

1. Low heat input: Short circuit MIG welding reduces the heat input by lowering the voltage and current during the short circuit phase. This helps prevent distortion, warping, burn-through, and cracking of thin or heat-sensitive materials.


2. High deposition rate: Short circuit MIG welding allows for a high wire feed speed and a high frequency of droplet transfer. This results in a high deposition rate and a fast travel speed.


3. Good penetration: Short circuit MIG welding provides good penetration into the base metal by creating a strong arc force during the peak current phase. This helps fill gaps and ensure strong fusion.


4. Low spatter: Short circuit MIG welding reduces the spatter by controlling the size and frequency of the droplets. This also reduces post-weld cleaning and improves weld appearance.


5. Versatility: Short-circuit MIG welding can be used for various materials, such as carbon steel, stainless steel, aluminum, and others. It can also be used for various joint configurations, such as butt joints, lap joints, T-joints, corner joints, and others. It can also be used for various welding positions, such as flat, horizontal, vertical, and overhead.

III. What are the Disadvantages of Short-Circuit MIG Welding?

Short circuit MIG welding also has some limitations and drawbacks, such as:

1. Lack of fusion: Short-circuit MIG welding can sometimes result in a lack of fusion or incomplete penetration due to insufficient heat input or improper technique. This can compromise weld strength and integrity.

2. Porosity: Short circuit MIG welding can sometimes cause porosity or gas entrapment in the weld due to improper shielding gas selection or contamination of the base metal or filler wire. This can affect weld appearance and quality.

3. Arc instability: Short-circuit MIG welding can sometimes suffer from arc instability or erratic arc behavior due to improper settings or external factors. This can cause inconsistent welds and increased spatter.

IV. How to Perform Short Circuit MIG Welding?

The technique for short-circuit MIG welding can vary depending on the material, joint, and position being welded. However, some general tips are:

1. Electrode angle: The electrode angle is the angle between the wire electrode and the workpiece. For short-circuit MIG welding, a push or drag technique can be used. A push technique involves holding the electrode at a 10 to 15-degree angle in the direction of travel. This helps flatten the weld and reduce penetration. A drag technique involves holding the electrode at a 10 to 15-degree angle opposite to the direction of travel. This helps increase penetration and build up more weld.





2. Electrode stickout: The electrode stickout is the distance between the contact tip and the workpiece. For short-circuit MIG welding, a short stickout of about 1/4 to 3/8 inches is recommended. This helps maintain a stable arc and reduce spatter.





3. Travel speed: The travel speed is the speed at which the electrode moves along the joint. For short-circuit MIG welding, a moderate to fast travel speed is recommended. This helps prevent excessive heat input and distortion.





4. Weld pool size: The weld pool size is the size of the molten metal that forms behind the electrode. For short-circuit MIG welding, a small to medium weld pool size is recommended. This helps prevent sagging or undercutting of the weld.


View MIG Welding: The Basics for Mild Steel.

V. What are the Applications of Short-Circuit MIG Welding?

Short circuit MIG welding can be used for a wide range of applications, such as:

• Automotive industry: Short-circuit MIG welding is commonly used for welding thin sheet metal parts, such as car body panels, frames, exhaust pipes, and mufflers.

• Construction industry: Short circuit MIG welding is commonly used for welding structural steel components, such as beams, columns, braces, and trusses.

• Manufacturing industry: Short circuit MIG welding is commonly used for welding metal products, such as furniture, appliances, tools, and machinery.

• Repair and maintenance industry: Short circuit MIG welding is commonly used for repairing or modifying metal parts, such as pipes, tanks, valves, and fittings.

VI. How to Compare Short Circuit MIG Welding with Other Metal Transfer Modes?

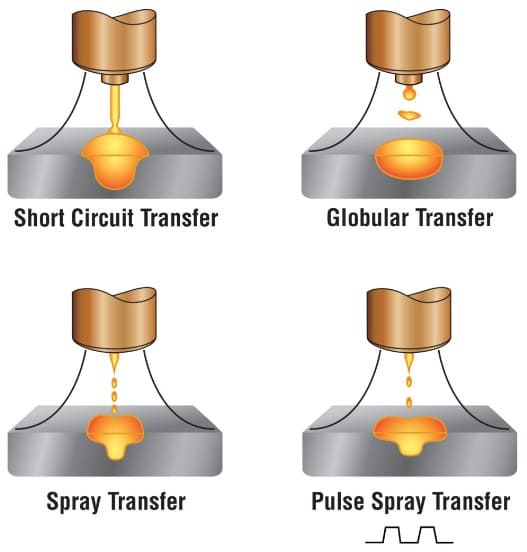

Short-circuit MIG welding is one of several metal transfer modes that can be achieved with MIG welding. Other common modes are:

1. Globular transfer: Globular transfer is a mode that involves the transfer of large and irregular droplets across the arc. This mode occurs at high voltage and low current settings. It produces high heat input, deep penetration, high spatter, and poor appearance.

2. Spray transfer: Spray transfer is a mode that involves the transfer of small and uniform droplets across the arc. This mode occurs at high voltage and high current settings. It produces low heat input, shallow penetration, low spatter, and good appearance.

3. Pulsed spray transfer: Pulsed spray transfer is a mode that involves alternating between high peak current and low background current. This mode produces small droplets that are transferred during the peak current phase. It combines the advantages of spray transfer and short circuit transfer, such as low heat input, good penetration, low spatter, and good appearance.


The choice of metal transfer mode depends on factors such as material type, thickness, position, quality requirements, and cost considerations.

VII. Conclusion

Short-circuit MIG welding is a versatile and useful welding process that can be used for various applications and materials. It offers advantages such as low heat input, high deposition rate, good penetration, low spatter, and versatility. However, it also has some disadvantages, such as a lack of fusion, porosity, and arc instability. Therefore, it is important to understand the fundamentals of short-circuit MIG welding, including its settings, techniques, and applications. It is also important to compare it with other metal transfer modes and choose the best one for the specific welding situation. By following these guidelines, welders can improve their short-circuit MIG welding skills and achieve high-quality welds.
